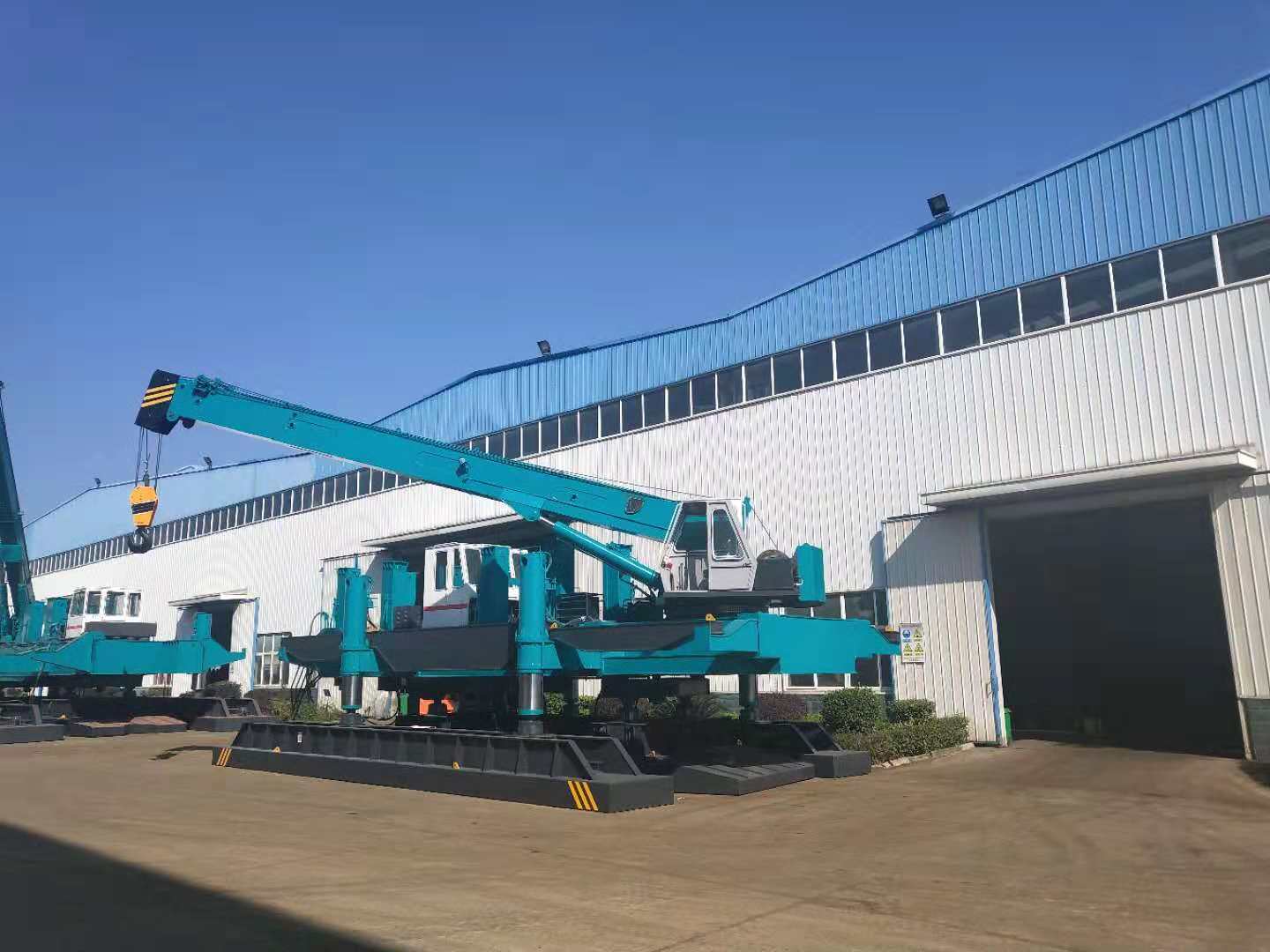

T-Works Pile Foundation Equipment for Spun and Square Concrete Pile foundation
1, Description:
ZYC series hydraulic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, no vibration, and fast pile driving, high quality pile. It is represent the future development tendency of pilling machinery.
2, Applications:
- Clay, soft soil, sand layer, etc.
- Noise regulated urban area.
- Vibration regulated areas where traditional methods may threaten the stability of existing structures.
-
3, Specifications:
| Parameter/Model | ZYC1000 |
| Rate piling pressure(KN) | 10000 |
| Piling speed(m/min) | Fast | 7.2 |
| Low | 1.1 |
| Piling stroke(m) | 1.9 |
| Pace(m) | Longitudinal | 3.6 |
| Horizontal | 0.7 |
| Angle range(°) | 11 |
| Rise stroke(m) | 1.2 |
| Square pile(mm) | Max | 650 |
| Circle pile(mm) | Max | 800 |
| Side piling(mm) | 1400 |
| Corner piling space(mm) | 2800 |
| Lifting weight(t) | 25 |
| Pile hanging length(m) | 17 |
| Power(KW) | Piling | 141 |
| Lifting | 37 |
| Main dimension(m) | Work length | 15.4 |
| Work width | 8.62 |
| Transpot height | 3.35 |
| Total weight(t) | 1000T |
4, Feature Advantage:
1.Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
2.Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.
3.Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.
4.Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
5.Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.
